Cranberry juice is extracted in factories by crushing the berries, then pressing and filtering the juice, often followed by pasteurization for preservation.
Cranberry juice extraction is a precise industrial process that transforms tart berries into the popular beverage. Factories use specialized equipment and techniques to maximize juice yield while preserving nutrients and flavor.
The Cranberry Juice Extraction Process Step-by-Step

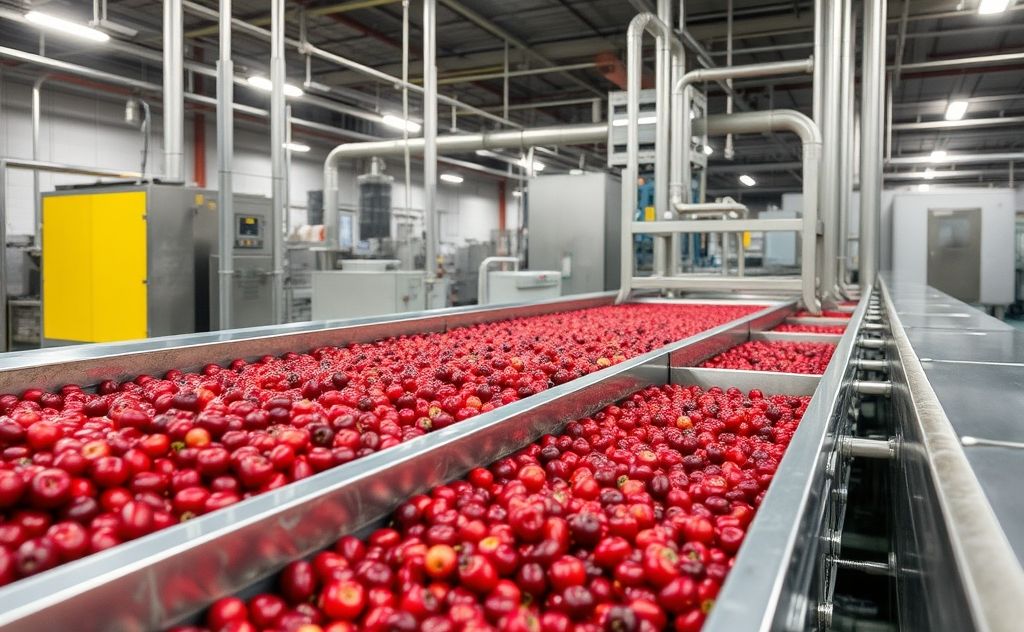

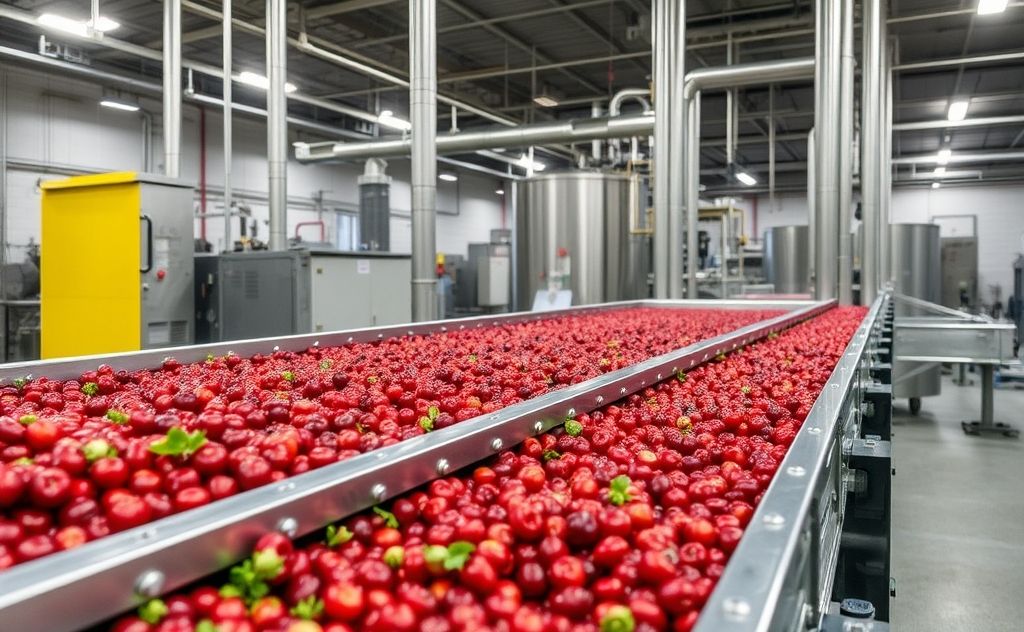

1. Harvesting and Initial Cleaning
Cranberries are typically harvested using wet harvesting methods where bogs are flooded. The berries float to the surface for collection. Upon arrival at processing plants, they undergo:
- High-pressure water rinses to remove debris
- Sorting belts to remove damaged berries
- Optional freezing for some premium juice products
2. Crushing and Mashing
The cleaned berries move to industrial crushers that break them down into a pulp. Some facilities use heavy-duty juicers designed specifically for tough-skinned fruits like cranberries.
3. Pressing and Juice Extraction
The mashed berries undergo pressing using one of these methods:
| Method | Pressure Used | Juice Yield |
|---|---|---|
| Hydraulic Press | Up to 10,000 psi | 85-90% |
| Belt Press | 300-600 psi | 75-80% |
| Centrifugal | High-speed rotation | 70-75% |
4. Filtration and Clarification
The extracted juice passes through multiple filtration stages:
- Coarse filtration removes large particles
- Fine filtration eliminates smaller solids
- Ultrafiltration (for clear juices) removes all suspended matter
5. Concentration (Optional)
Many factories produce concentrate by removing water through:
- Vacuum evaporation at low temperatures
- Reverse osmosis filtration
- Freeze concentration
Quality Control Measures
Throughout processing, factories implement strict quality checks:
Brix Level Monitoring
Refractometers measure sugar content to ensure consistent sweetness levels.
Acidity Testing
pH meters verify the characteristic tartness of cranberry juice (typically 2.3-2.5 pH).
Microbiological Screening
Labs test for harmful bacteria and yeasts to ensure product safety.
Modern Innovations in Cranberry Processing
Cold-Press Technology
Some premium brands now use cold-press extraction methods that operate at lower temperatures to better preserve nutrients.
Enzymatic Extraction
Adding pectinase enzymes helps break down cell walls for higher juice yields without excessive pressure.
Pulsed Electric Field
This emerging technology uses short electrical pulses to rupture cell membranes gently.
From Juice to Final Products
The extracted juice becomes various commercial products:
100% Cranberry Juice
Minimally processed with no additives, though often blended with sweeter juices due to extreme tartness.
Cranberry Juice Cocktail
Contains about 28% cranberry juice mixed with water and sweeteners like cane sugar or apple juice concentrate.
Concentrates
Used as ingredients in other beverages, sauces, and food products. According to FDA guidelines, concentrates must maintain certain nutritional standards.
Environmental Considerations
Modern cranberry processing plants implement sustainability measures:
- Water recycling systems in washing areas
- Composting of pomace (leftover solids)
- Energy-efficient evaporation systems
- Wastewater treatment before discharge
The cranberry industry continues evolving its extraction methods. Research from nutrition studies drives innovations that maximize both yield and health benefits while minimizing environmental impact.
