Essential Machines for Cranberry Juice Extraction: An Engineer’s Guide

You’ve got a ton of fresh cranberries and a deadline. The fruit is ripe, but the extraction process is a mess. The yield is low, the juice is cloudy, and the equipment is clogging. This scenario plays out in small facilities every season. Most generic juicing guides don’t help because cranberries are a different beast.

This guide covers the essential machines for cranberry juice extraction, with a focus on the specific challenges of this fruit. You’ll learn about the processing line from washing to pasteurization, how to compare pressing technologies, and where to find extra revenue in the pomace. We’ll also touch on sanitation and automation, because those decisions hit your bottom line just as hard as the press itself.

For smaller batches or a quick test run at home, a simple manual tool works. A heavy-duty manual juicer like the Bellemain Metal Lemon Squeezer offers a practical way to handle a few pounds of berries without firing up industrial gear. It’s built with reinforced hinges and thick 18/10 stainless steel, so it won’t flex or etch when you’re working through a stubborn batch.

Why Cranberry Juice Extraction is Unique (Pectin, Yield, and Viscosity)

Cranberries are not oranges. They have a tough skin and a high concentration of pectin, a polysaccharide that turns juice into a gel-like mass. This pectin traps water and juice inside the fruit’s cellular structure. If you press raw, cold cranberries, you’ll be lucky to get a 50% yield. The juice that does come out is thick and difficult to filter.

The industry solves this with heat and enzymes. You must heat the mash to break down the cell walls, then add a pectinase enzyme to cut the pectin chains. This drops viscosity dramatically and frees the trapped liquid. Without this step, your expensive press becomes a paperweight.

Another quirk is the natural acidity and benzoic acid content. This makes the juice naturally shelf-stable, but it also accelerates corrosion on low-grade steel. You need food-grade stainless steel (316L is better than 304 for the piping) to avoid pitting and metallic off-flavors in the final product.

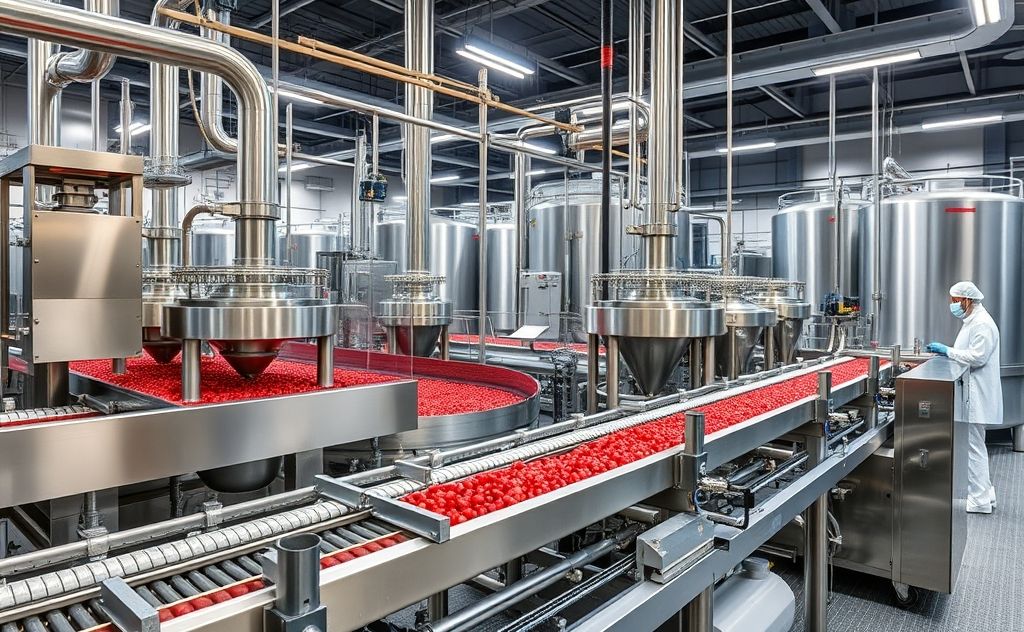

The Core Processing Line: From Bins to Bottle

Setting up a line involves more than just a press. You need a coordinated flow of fruit, water, and energy. Here is the sequence that works for most operations.

Step 1: Washing and Sorting (Destemming and Air-Cleaning)

Whole cranberries arrive with leaves, stems, and the occasional rock. A drum washer with high-pressure water sprays removes field dirt. After washing, an air cleaner uses a stream of air to blow off lightweight debris like leaves, while a destemmer pulls off the woody stems. A sorting conveyor lets workers spot and remove rotten or green berries. This step matters more than you think. A single rotten berry can introduce off-flavors that survive pasteurization.

Step 2: Crushing and Mash Heating (Enzyme Dosing)

Clean berries go into a hammer mill or a roller crusher. The goal is to break the skin without crushing the seeds into fine powder. Seeds contain bitter tannins; too much crushing ruins the taste. The resulting mash moves to a heat exchanger or a steam-jacketed tank. You heat it to 50-60°C (122-140°F). At this temperature, you dose the pectinase enzyme at a rate of roughly 50-200 grams per ton of fruit, depending on the enzyme’s activity and the fruit’s maturity.

Hold the mash at this temperature for 30 to 60 minutes. This is the ‘mash treatment’ phase. It’s the single biggest lever for yield. Skipping it or rushing it will cost you hundreds of liters of juice per hour.

Step 3: Pressing (Belt vs. Screw Press for Cranberries)

After the enzyme treatment, the mash is ready for pressing. Two main technologies dominate: the belt press and the screw press. The belt press squeezes the mash between two porous belts passing over rollers. It works well for soft, treated fruit and gives a high juice yield (around 75-85%). The screw press uses a rotating auger inside a conical screen, applying increasing pressure. It’s more compact and can handle slightly coarser feed, but it generates more frictional heat and can compact the pomace so hard that it becomes difficult to convey.

For cranberries specifically, the belt press tends to be the safer choice because the gentle pressure reduces the extraction of bitter seed compounds. The screw press is faster to clean but requires more careful adjustment of the back-pressure cone to avoid over-pressing.

Step 4: Filtration and Clarification (Ultrafiltration vs. Centrifuge)

Raw pressed juice contains suspended solids and colloidal pectin fragments. A decanter centrifuge spins out the heavy solids. For a clear juice, you then run the liquid through ultrafiltration (UF) membranes. UF is a cross-flow filtration process that removes particles down to 0.02 microns. It produces a brilliantly clear juice but requires careful cleaning and a steady feed pressure.

A cheaper alternative is a rotary vacuum filter or a plate-and-frame filter press with filter aid (diatomaceous earth). These work but they are labor-intensive and generate a solid waste stream that is harder to dispose of than a UF retentate, which you can often add to the pomace stream.

Choosing the Right Press: A Comparison of Belt and Screw Systems

This is the decision that defines your facility. Here’s a direct comparison based on typical operating data for cranberries.

The belt press wins on yield and quality, which is usually the point of a juice operation. The screw press wins on capital cost and floor space. If you are processing under 500 kg per hour, a screw press might be the only option that fits your budget. Above 2 tons per hour, a belt press becomes the standard because labor costs per ton drop significantly.

The Hidden Profit Center: Processing Pomace (Seeds and Fiber)

After pressing, you have a wet, fibrous cake called pomace. Most small producers pay to haul it away. That is a mistake. Cranberry pomace is rich in fiber, antioxidants, and seeds that contain oil.

You can dry the pomace using a rotary drum dryer to below 10% moisture. Dried pomace sells as a feed ingredient for livestock or as a base for nutraceutical extracts. The seeds can be separated using a specific gravity table or a winnower, then cold-pressed to produce cranberry seed oil, which commands a premium price in cosmetic markets. Investing in a hammer mill for the dry pomace and an air classifier for seed separation can turn a cost center into a revenue stream that offsets your energy bills.

Sanitation and Sustainability: CIP Systems and Water Recycling

Juice lines are notoriously hard to clean. The high sugar content creates biofilm. A manual disassembly wash takes hours and risks damage to sensitive parts. A Clean-in-Place (CIP) system solves this. It circulates a caustic solution, then an acid rinse, and finally a sanitizer through all the piping and equipment without taking it apart.

A typical CIP cycle uses 1-2% sodium hydroxide at 75°C for 30 minutes, followed by a water rinse, then 0.5-1% nitric acid at 60°C for 20 minutes. The system should include a heat recovery loop to pre-heat the next wash water, cutting energy use by up to 30%.

Water is another major cost. A flotation system or a simple settling tank can treat the wash water from the fruit washer, allowing you to reuse it for the first rinse stage. A standard line might use 5,000 liters of water per ton of fruit; a well-designed recycling system can cut that to 2,000 liters.

Automation and Control: Scaling from Pilot to Industrial Output

You don’t need to buy a fully robotic plant, but you do need sensors. A PLC (Programmable Logic Controller) system that monitors mash temperature, enzyme flow rate, and press pressure will pay for itself in consistency. Manual control leads to variable yield batch-to-batch. A simple control loop that adjusts the enzyme pump based on the mash temperature can improve average yield by 3-5%.

For larger plants, look for presses with remote monitoring capabilities. These systems track the vibration of the main bearings and the amperage draw of the drive motor. A spike in amperage often indicates a jam or a worn bearing. Catching this early prevents a 4-hour unplanned shutdown during the peak harvest window.

Cost Analysis: Capital vs. Operational Expenditure (ROI Calculator)

Let’s talk numbers. A complete line for 500 kg/h (washing through pasteurization) will cost roughly $150,000 to $300,000. A 5-ton/h line can run over $1.5 million. The operational costs differ just as much. The main variable costs are electricity, water, enzymes, and labor.

Consider a 1-ton/h line running 8 hours a day. At a 75% yield, you produce 6,000 kg of juice per day. If the juice sells for $1.50 per liter, that’s $9,000 in daily revenue. A 5% yield improvement from better enzyme dosing adds $450 per day. That’s over $100,000 per year on a 200-day season. This is why spending more on a precise dosing pump and a temperature control system is usually the right call.

For a smaller operation, you can start with a manual press and a batch pasteurizer. The best juicer for maximum juice extraction at that scale is often a hydraulic shop press with a custom basket, but that’s a different article. The key is to match your capital expenditure to your realistic throughput, not your hopes.

FAQ: Common Cranberry Processing Pitfalls and Fixes

Why is my juice yield so low even with a good press?

Check your mash temperature. If it’s below 45°C, the pectinase enzyme is inactive. Also, check the fruit’s maturity. Under-ripe cranberries have more protopectin, which is harder to break down. Try extending the mash holding time to 90 minutes.

My juice is hazy and won’t clear. What’s wrong?

You likely have residual pectin. Your enzyme dose was too low, or the enzyme was denatured by overheating. Test the juice with a simple alcohol test: mix one part juice with two parts 95% ethanol. If it forms a gel, you have pectin problems.

Can I use a standard apple press for cranberries?

You can, but you’ll get a lower yield. Apple presses are designed for softer fruit. Cranberries need the mash heating step and a press that can handle the high pressure without grinding the seeds. A bladder press is a good middle-ground option.

How do I avoid a bitter taste in my juice?

The bitterness comes from seed tannins. Don’t crush the mash too finely. Set your hammer mill gap to leave seeds intact. Also, avoid high press pressures at the end of the cycle. Stop the press when the juice flow slows to a trickle, rather than forcing out the last drops.

Is cold-press extraction viable for cranberries?

Cold-pressing raw cranberries is inefficient. You’ll get a low yield and a very astringent juice. The term ‘cold-press’ in the retail market usually refers to high-pressure processing (HPP) for preservation, not the extraction method. For extraction, heat is your friend. For home use, a cold press juicer for storage works, but expect to use a lot more fruit to get the same volume you’d get from a masticating juicer with a steam treatment first.

What to Do Next in Your Facility

• Test your pectin levels before you buy a press. The enzyme treatment is the biggest yield lever.
• Run a side-by-side trial of a belt press and a screw press with your own fruit. Yield data from a different crop won’t apply.
• Price out a small pomace dryer. If you process more than 1 ton per day, the payback is often under two years.
• Install a water meter on your washer line. You’ll likely find you can cut water use by 30% with simple nozzles and a settling tank.
• Invest in a PLC temperature controller for your mash tank. Manual temperature management is a recipe for inconsistent batches.
• Budget for spare press belts or screw flights. The harvest season is short, and a two-week wait for a part is a disaster.
